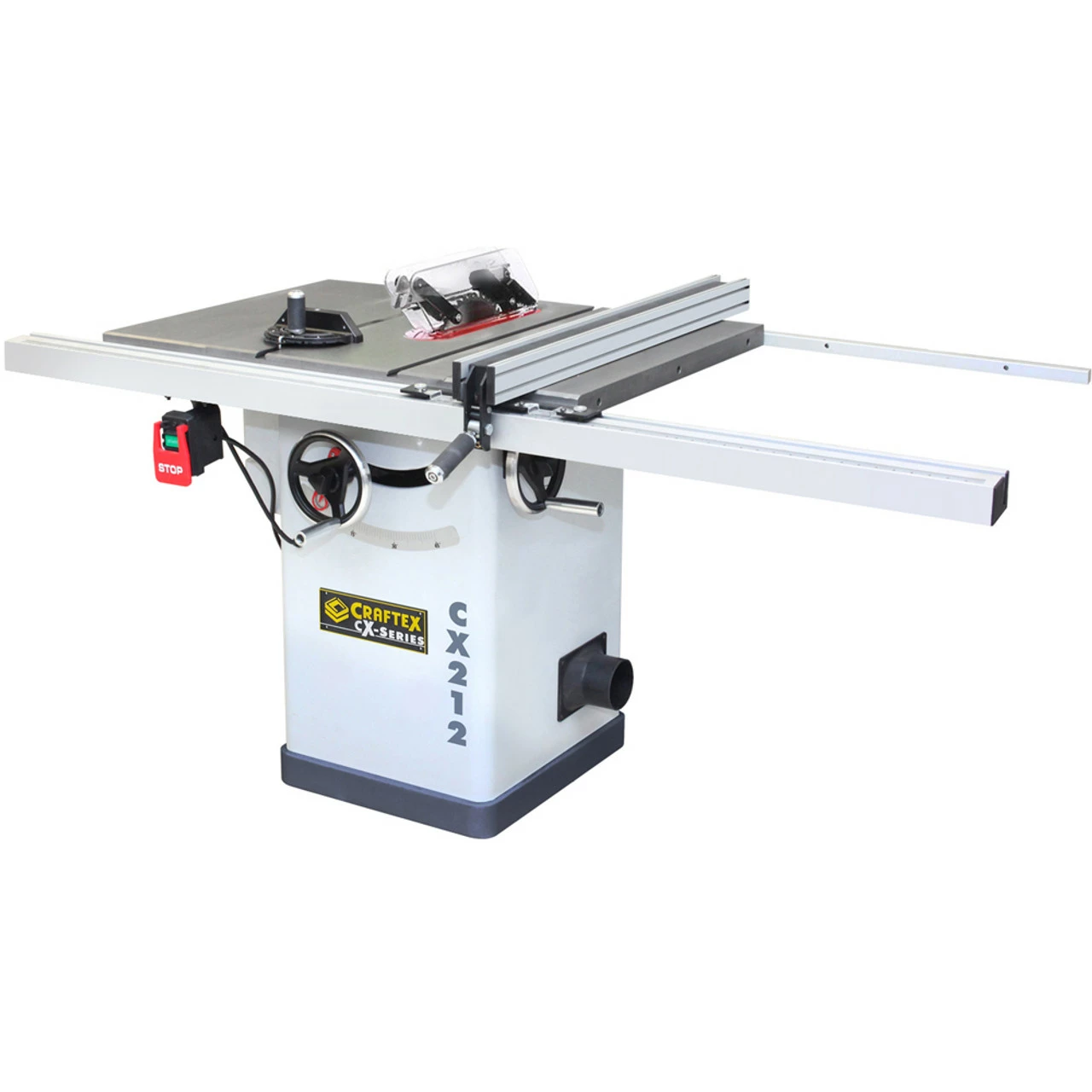

10″ Cabinet Table Saw with 30″ Fence – Craftex CX-Series
This heavy duty table saw is equipped with a powerful 2 HP motor and has plenty of power to easily cut through stock with ease. The 30″ long fence, 40-1/2″ x 27″ cast iron table with the sturdy cabinet provides a large and solid cutting surface to handle large stock.
Other features include Cabinet mounted trunnions, T-type heavy duty rip fence with aluminum face & easy lift off feature, user friendly blade guard,Β left tilting arbor, riving knife and a 4″ dust port for optimum dust removal.
FEATURES
- User Friendly Blade Guard

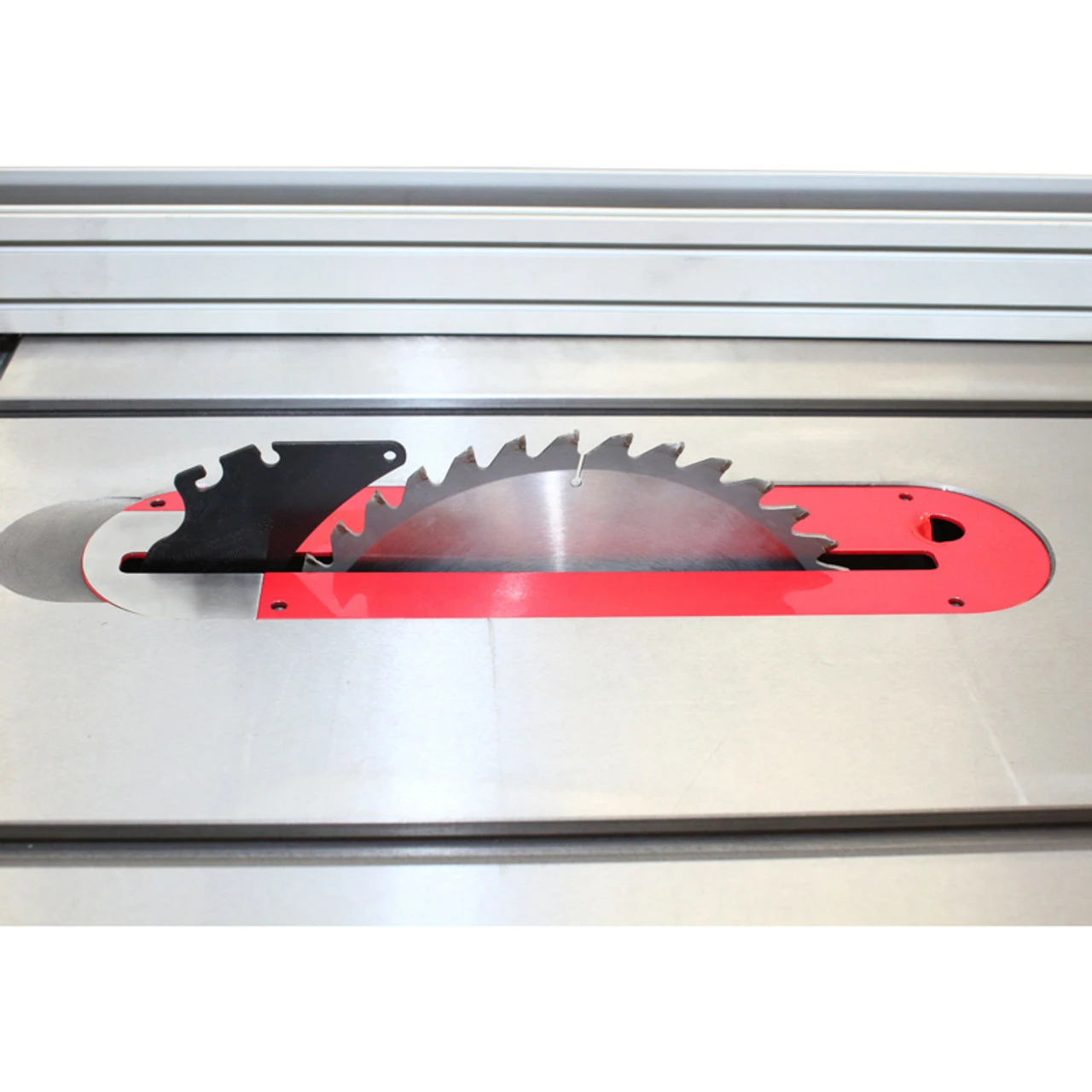

- Quick Release Blade Guard & Riving Knife
- Heavy Duty 2HP TEFC motor (120V/240V) Pre-wired 120V
- V-Belt Drive

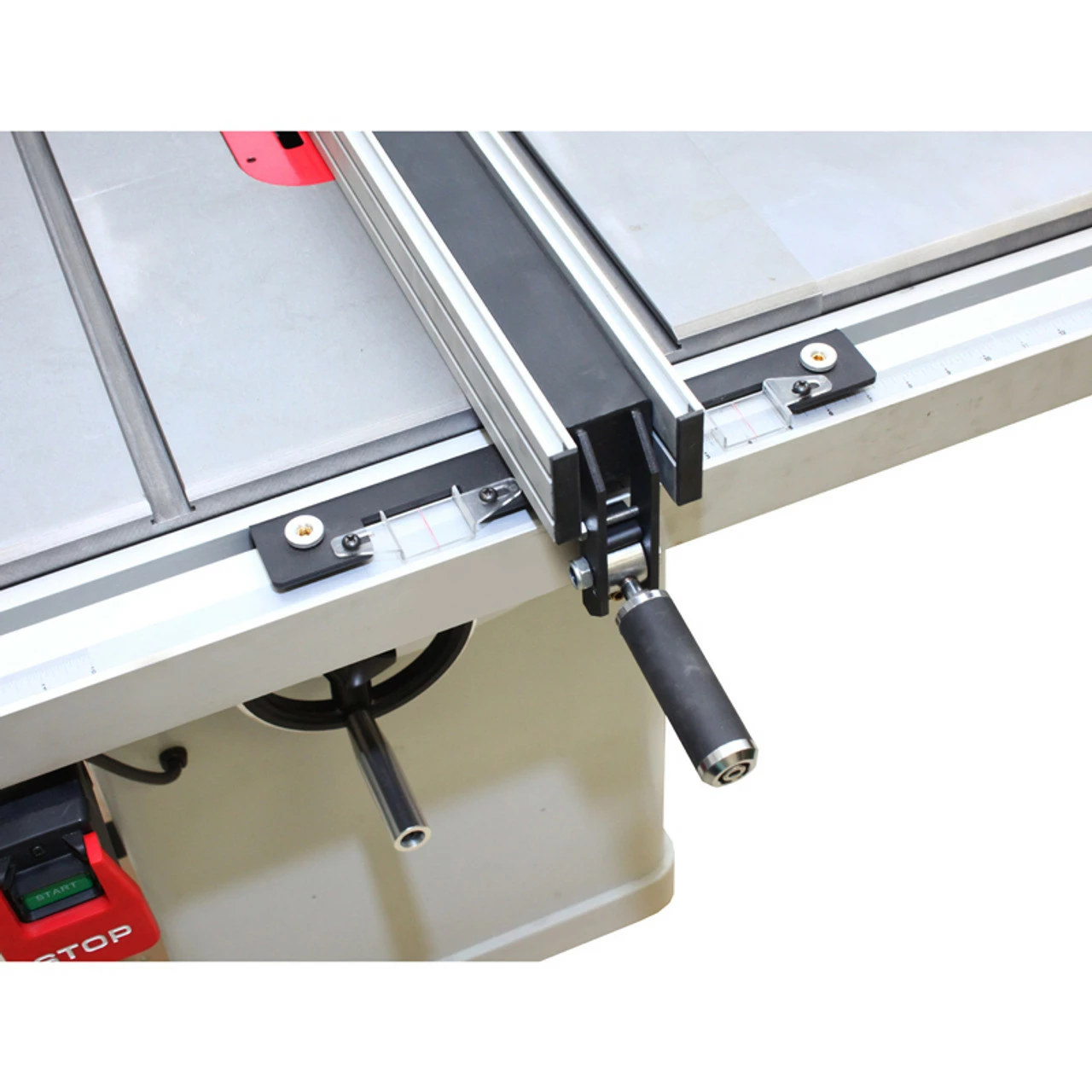

- T-type Heavy Duty Rip Fence with AluminumΒ Face
- T-slot Miter Gauge
- Dado Insert
- Cast Iron Trunnions Mounted to Cabinet
- Includes a 10″ 40T Carbide Tipped Blade
- Powder Coated Paint
- Beveled front table edge
- CSA Approved
- 3 Year Warranty
Β Β
SPECIFICATIONSΒ
- Motor: 2HP,Β (120V/240V) Pre-wired 120V
- Amps: 15A at 120V, 7.5A at 240V
- Blade Guard: Riving Knife, CSA Approved & UL897 Compliant
- Drive System: Vβ Belt Drive
- Fence Size: Length 35-3/4″ x Width 3-1/8″ x Height 2-7/16″
- Table Size: 40-1/2β x 27β (with Extension Wings)
- Floor to Table Height: 35-3/8″
- Arbor Tilt: Left Tilting
- Arbor Diameter: 5/8″
- Arbor Speed: 3450 RPM
- Blade Size: 10β
- Maximum Depth of Cut at 90Β°: 3-1/4″
- Maximum Depth of Cut @ 45Β°: 2-1/4β
- Rip Capacity: 31″ Right, 16 3/4″ Left
- Dust Collection Port: One 4β Port
- Approximate Weight: 130 Kgs
