Buy 🥰 14IN. X 20IN. HEAVY DUTY VS WOOD LATHE CSA CX814 🔔

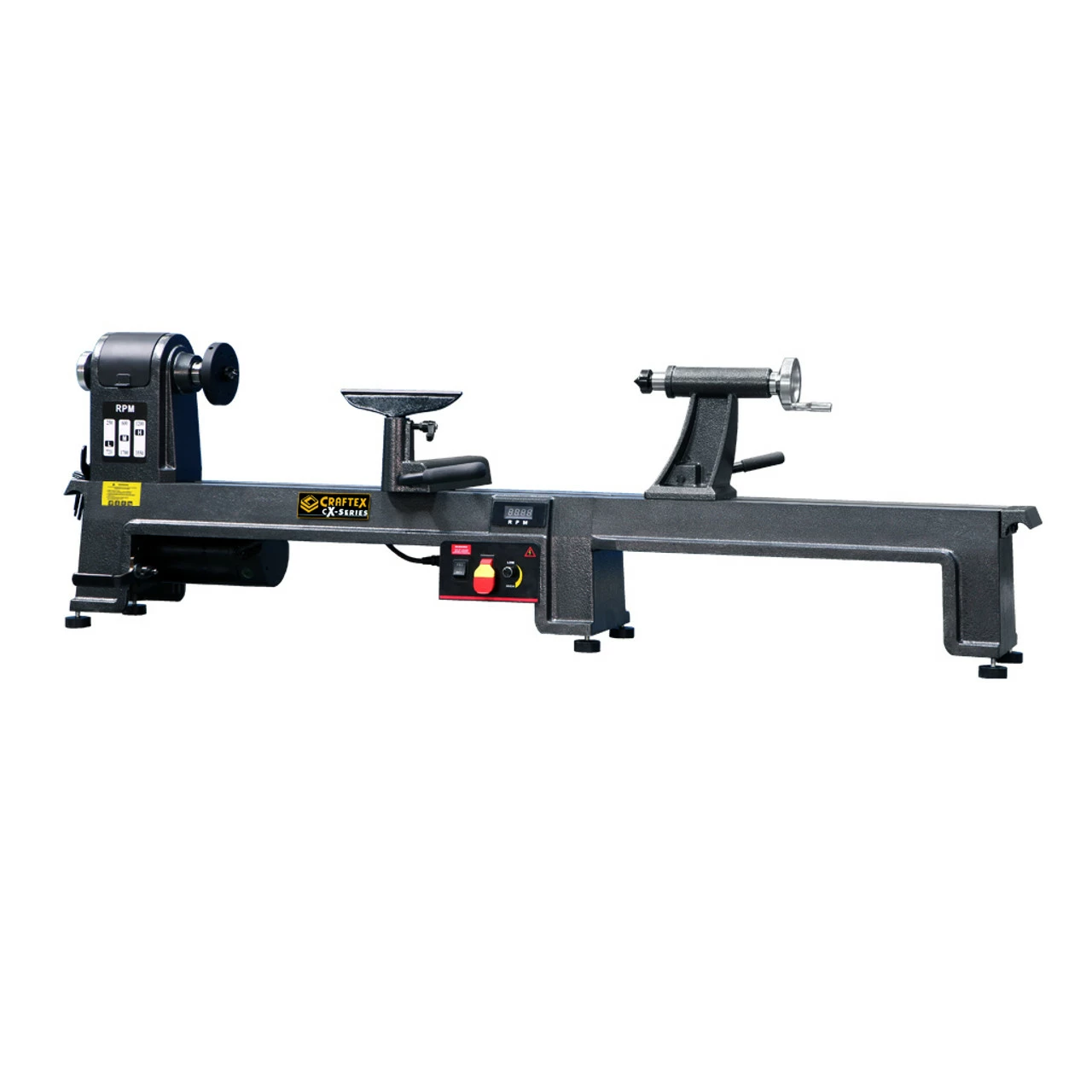

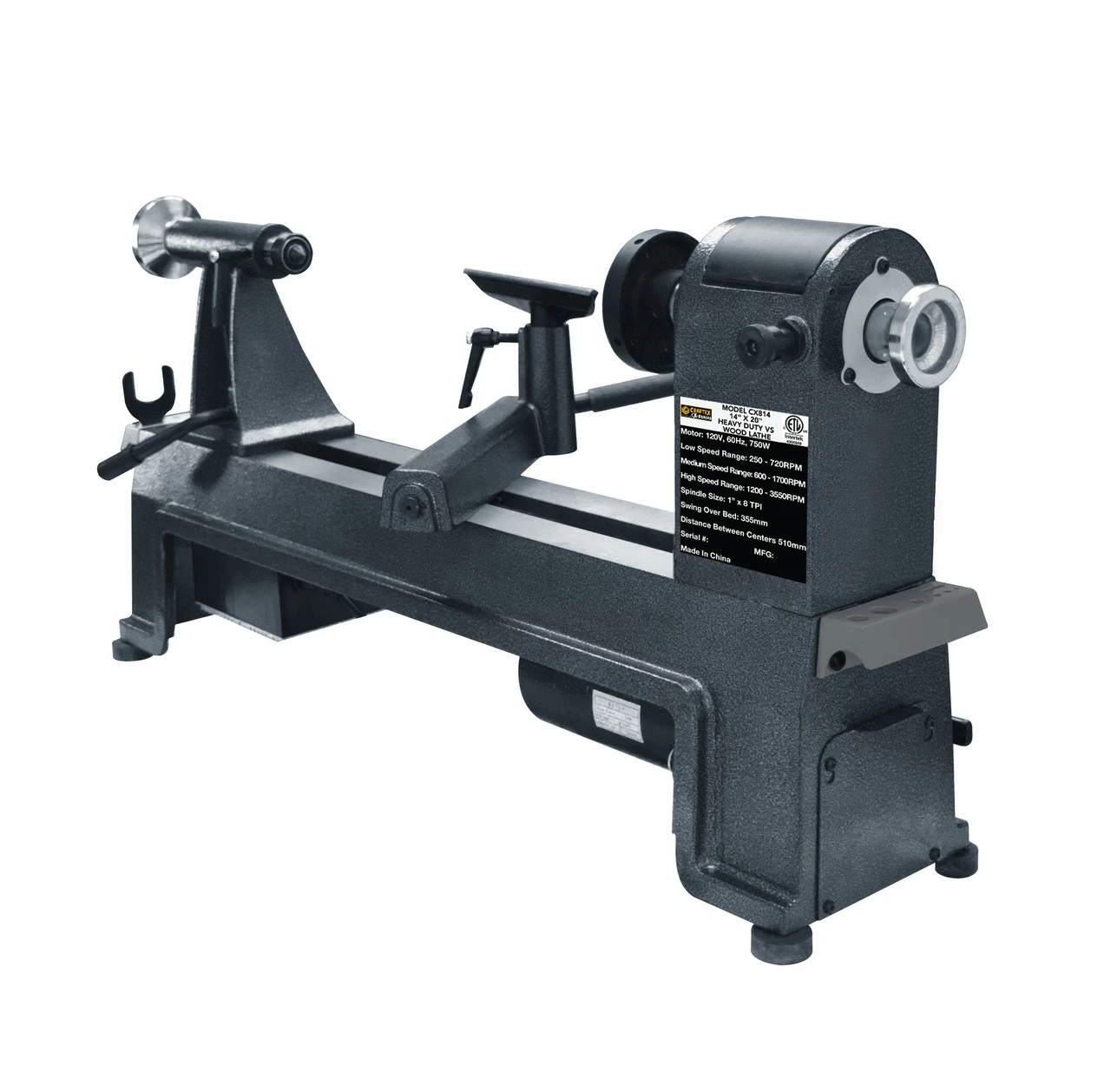

The CX814 14″ X 20″ Heavy Duty Variable Speed Wood Lathe is a small but impressive and versatile wood lathe that is equipped with a powerful 1HP Universal motor. With speed ranges from 250 up to 3550 RPM this lathe is sure to be suitable for almost any turning project with ability to dial in the exact speed required for any application. With the optional CX814EXT Lathe extension available separately you won’t have to worry about outgrowing this lathe as it can grow along with your interests in wood turning. All this is finished off with an ultra durable hammer tone finish that will help your machine look new and stand the test of time.

FEATURES:

Powerful 1HP Variable speed motor 250 RPM to 3550 RPM
Ultra Durable Hammer tone finish
Precision ground bed
14″ Swing over bed

SPECIFICATIONS:

Horsepower: 1HP
Voltage: 120V
Amps: 6A
Type: Universal Brush-Type
Motor Power: Variable frequency motor
Transfer Belt: Drive Belt
Swing Over Bed: 14″
Swing Over Tool Rest Base: 10″
Distance Between Centers: 20″
Max. Distance Tool Rest to Spindle Center: 5″
No of Spindle Speeds: Variable
Spindle Speed Range: 250-720 RPM, 600-1700 RPM, and 1200-3550
Spindle Taper: MT2
Spindle Thread Size: 1″ x 8TPI
Spindle Bore: 5/8 inch
Type of Included Spindle: Center Spur
Indexed Spindle Increments: 15 deg.
No of Indexes: 24
Tool Rest Width: 8″
Tool Rest Post Diameter: 1″
Tool Rest Post Length: 3-1/2″
Tool Rest Base Height: 2″
Tailstock Taper: MT2
Type of Included Tailstock Center: Live
Tailstock quill travel: 3.543″ (90mm)
Bed Width: 5-1/8″
Faceplate Size: 4″
Net Weight: 50KG
Width (side-to-side) x Depth (front-to-back) x Height: 41-1/2″X22″X19″
Gross Weight: 52.5KG
Length x Width x Height: 38.2″x20.0″x11.8″ (970*530*300mm)
Warranty: 3 Years
Includes:
Knock out bar
Faceplate
Live Centre
Spur
Tool Rests
