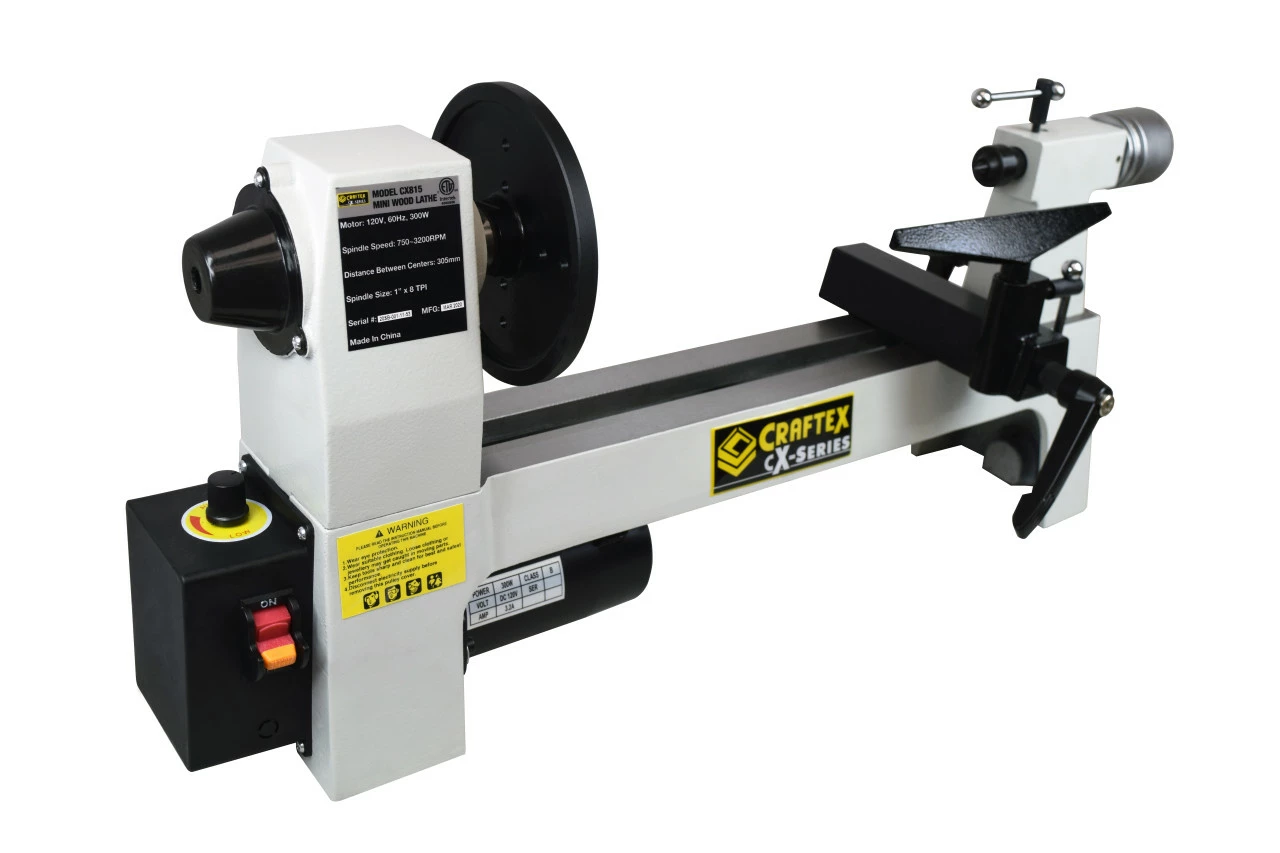

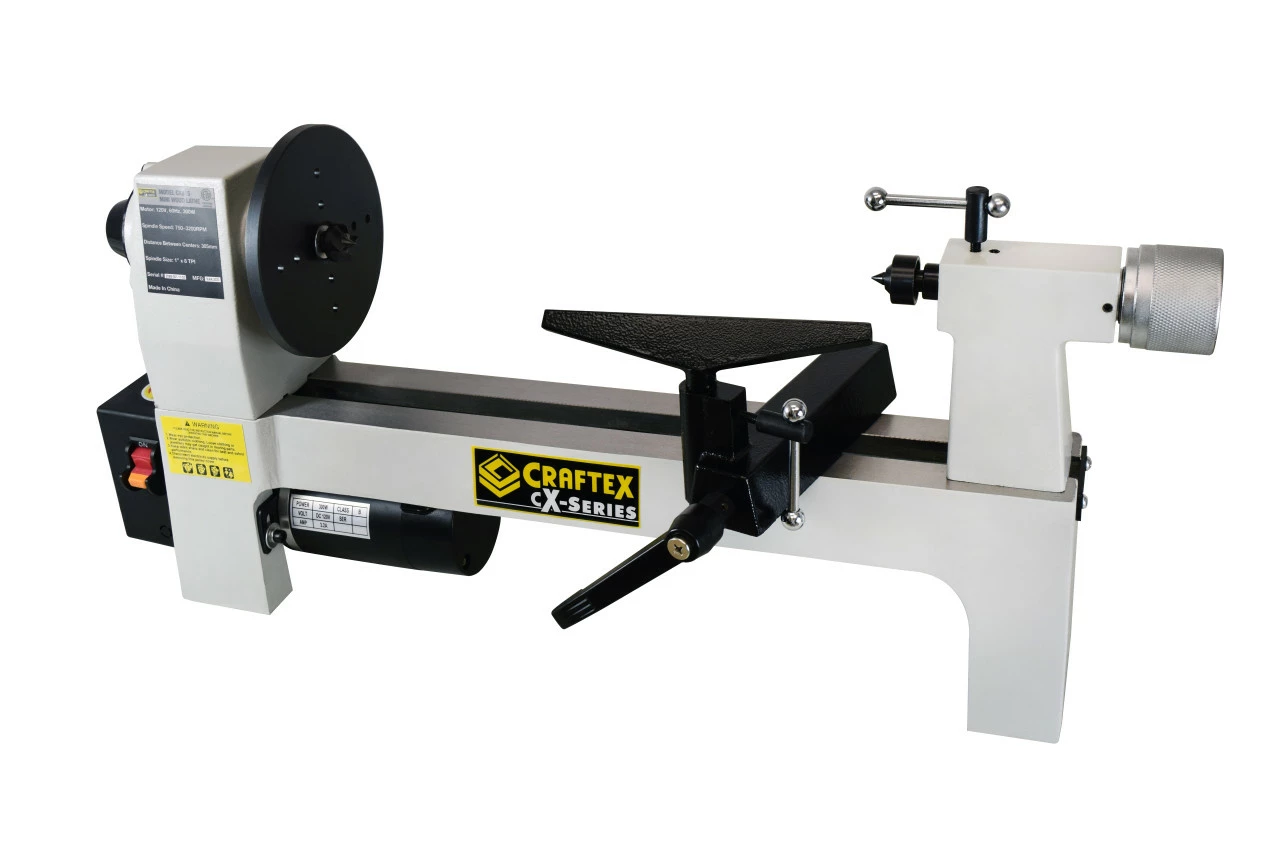

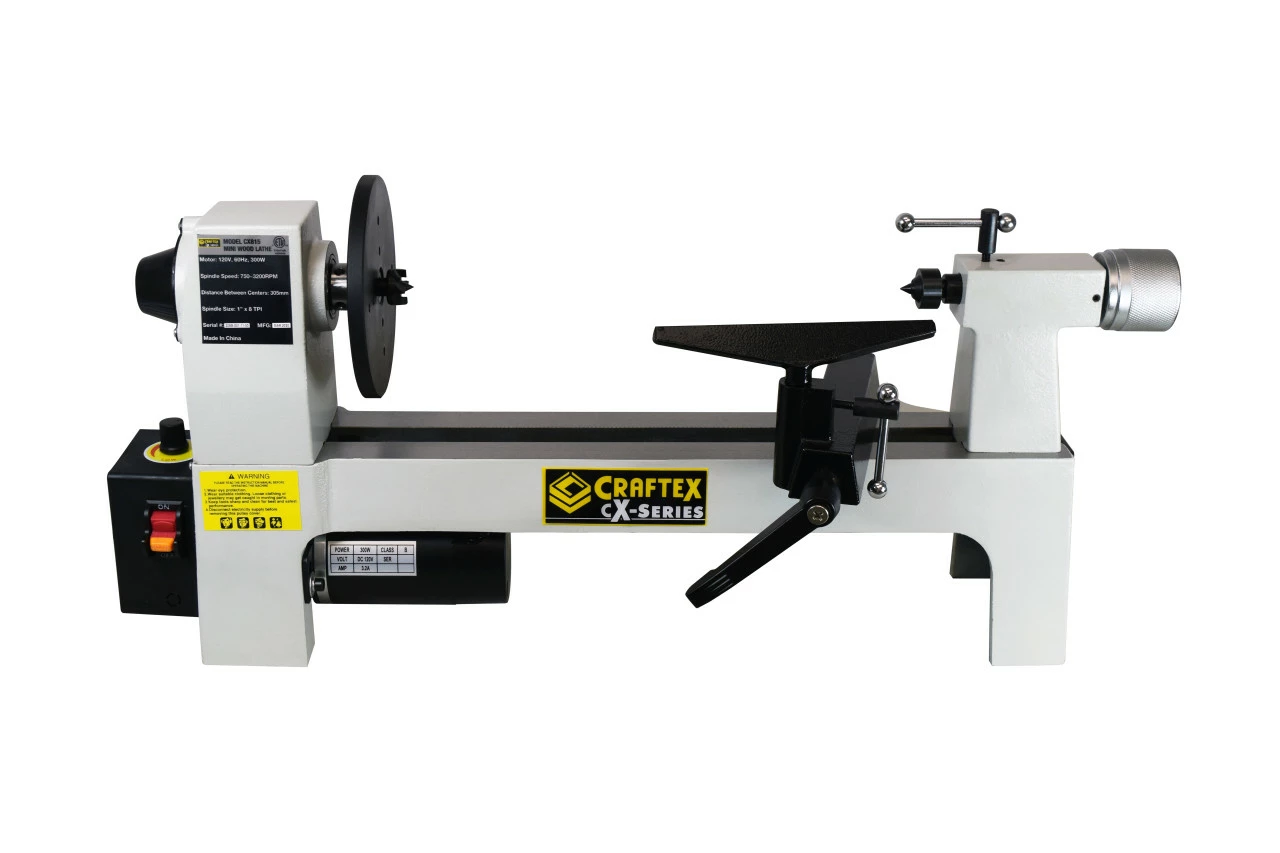

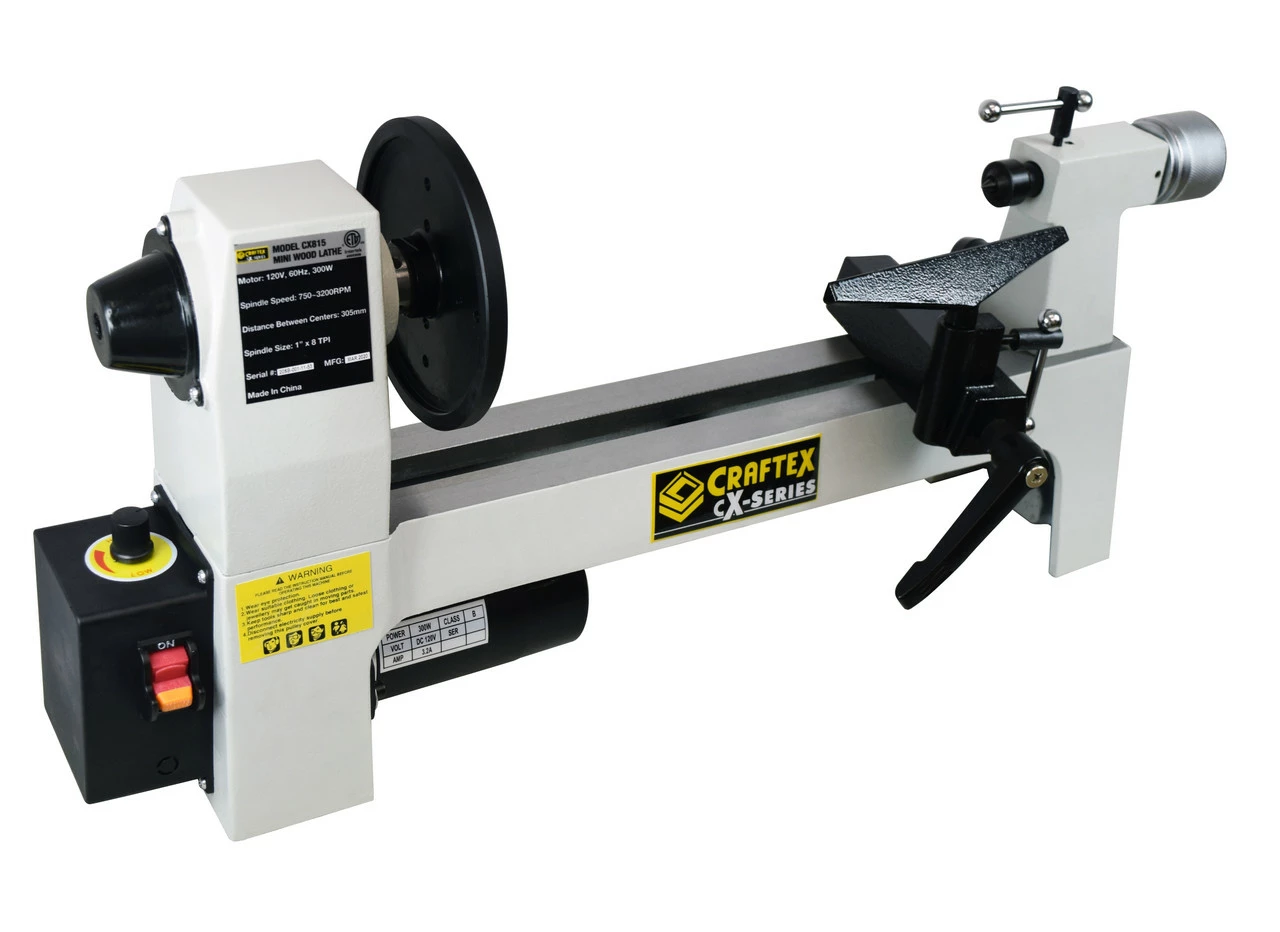

CX815 MINI WOOD LATHE VAR SPEED CSA CRAFTEX
This new CX-Series Mini Wood Lathe Features a strong 300W DC motor. This mini wood lathe would make a fine addition to any beginner’s workshop. With variable speed control you can turn stock at speeds ranging from 750 RPM to 3200 RPM. The solid cast iron construction finished of with a durable powder coated finish ensures rigidity and stability during operation. This CX-Series Mini Wood Lathe is ready for the smallest of projects like pens 8″ in length up to medium sized projects like turning 5″ bowls. All of our CX-Series machines are backed by our 3 year warranty giving you sound piece of mind and confidence and dependability in your new machine.
Features:
Knock out bar
5.7″ Faceplate
Live Centre
Spur

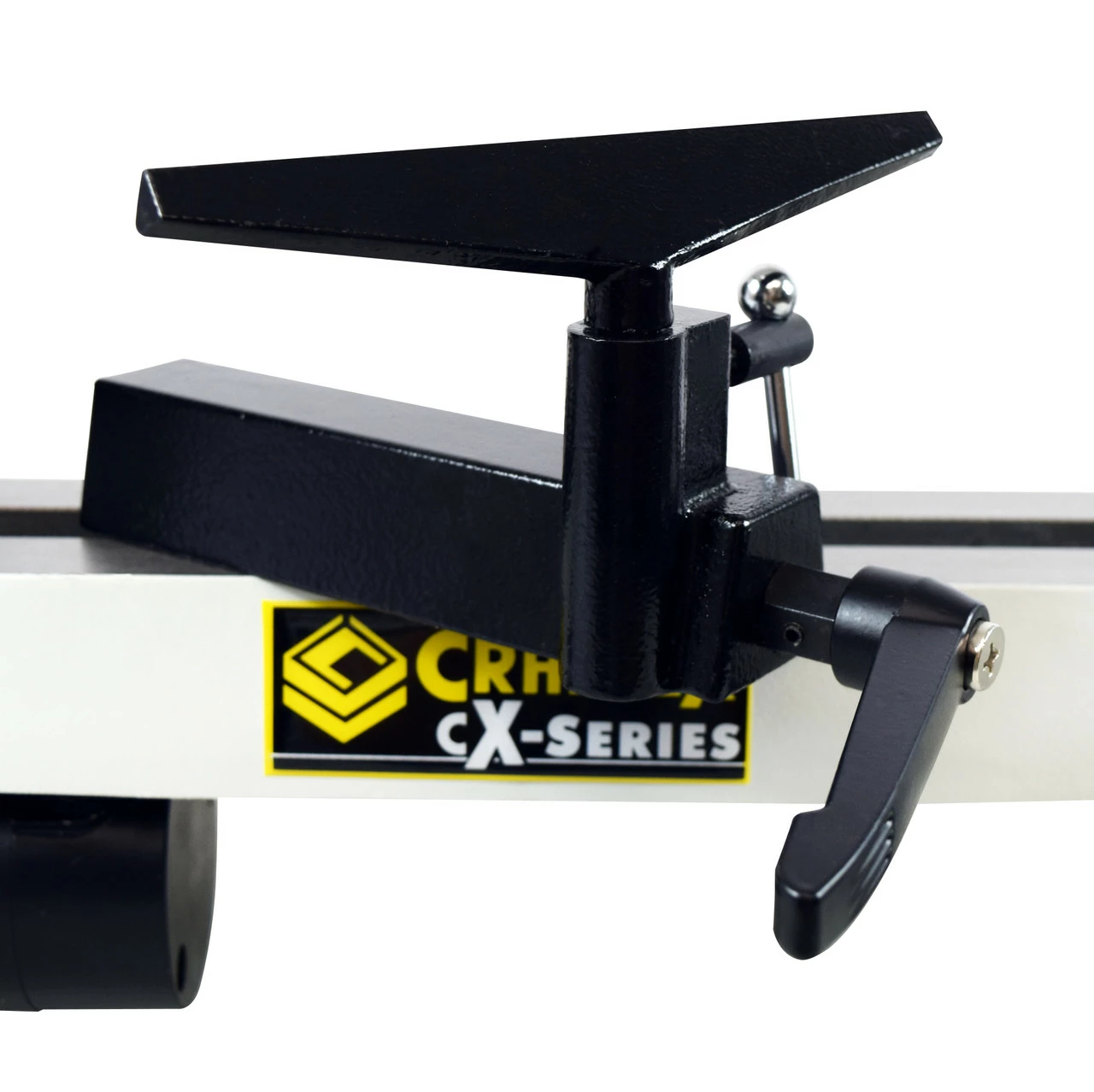

2 Tool Rests 4.5″ and 7″
Specifications:
Main Motor: 120-V, 60-Hz, 300W DC
Swing Over Bed: 210mm (8.2″)
Swing Over Tool Rest: 132mm (5.2″)
Distance Between Center: 305mm (12″)
Tailstock Travel: 40mm (1.6″)
Spindle Size: 1″ x 8 TPI
Spindle Taper: MT1
Tailstock Taper: MT1
Tool Rests: 4.5″ & 7″
Number of Spindle Speeds: Variable
Spindle Speed Ranges: 750 RPM to 3200 RPM
Bed Width: 80mm (3″)
Faceplate Size: 145mm (5.7″)
Bed Construction: Cast Iron
Headstock Construction: Cast Iron & Steel
Tailstock Construction: Cast Iron & Steel
Bearings: Shielded and Lubricated
Approx. Net/Gross Weight: 20 / 21Kg
Warranty: 3 Years
