Top 10 🌟 MINI WOOD LATHE W/DIGITAL READ OUT 12IN. X CX813 🌟

CX813

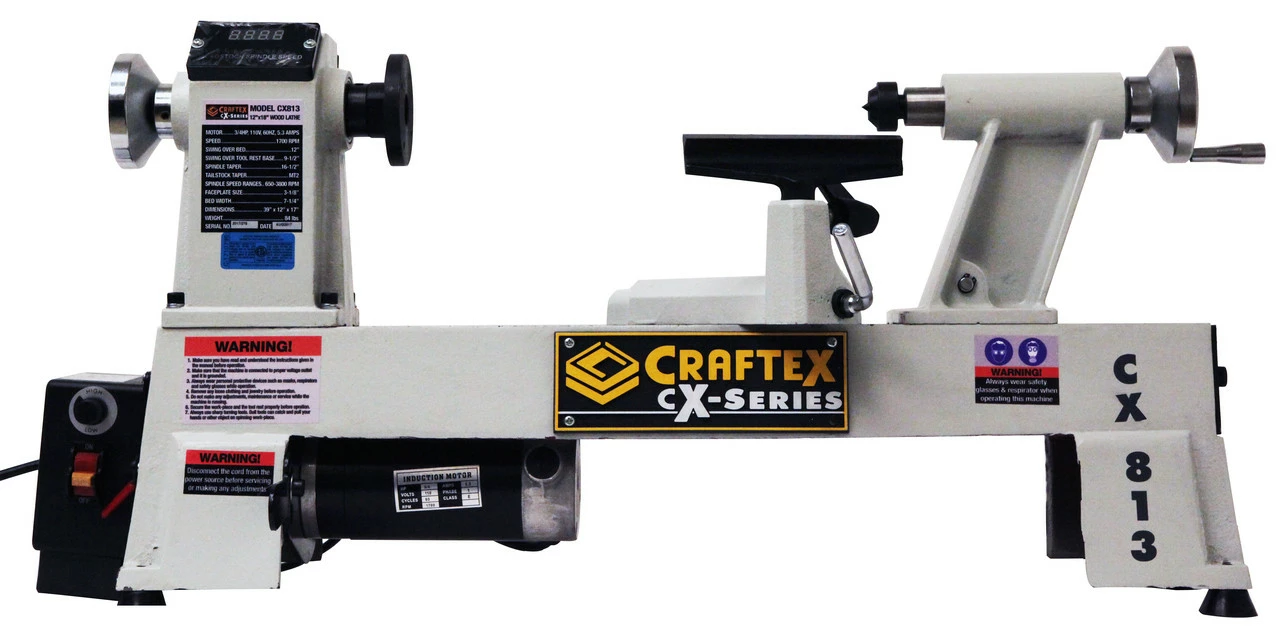

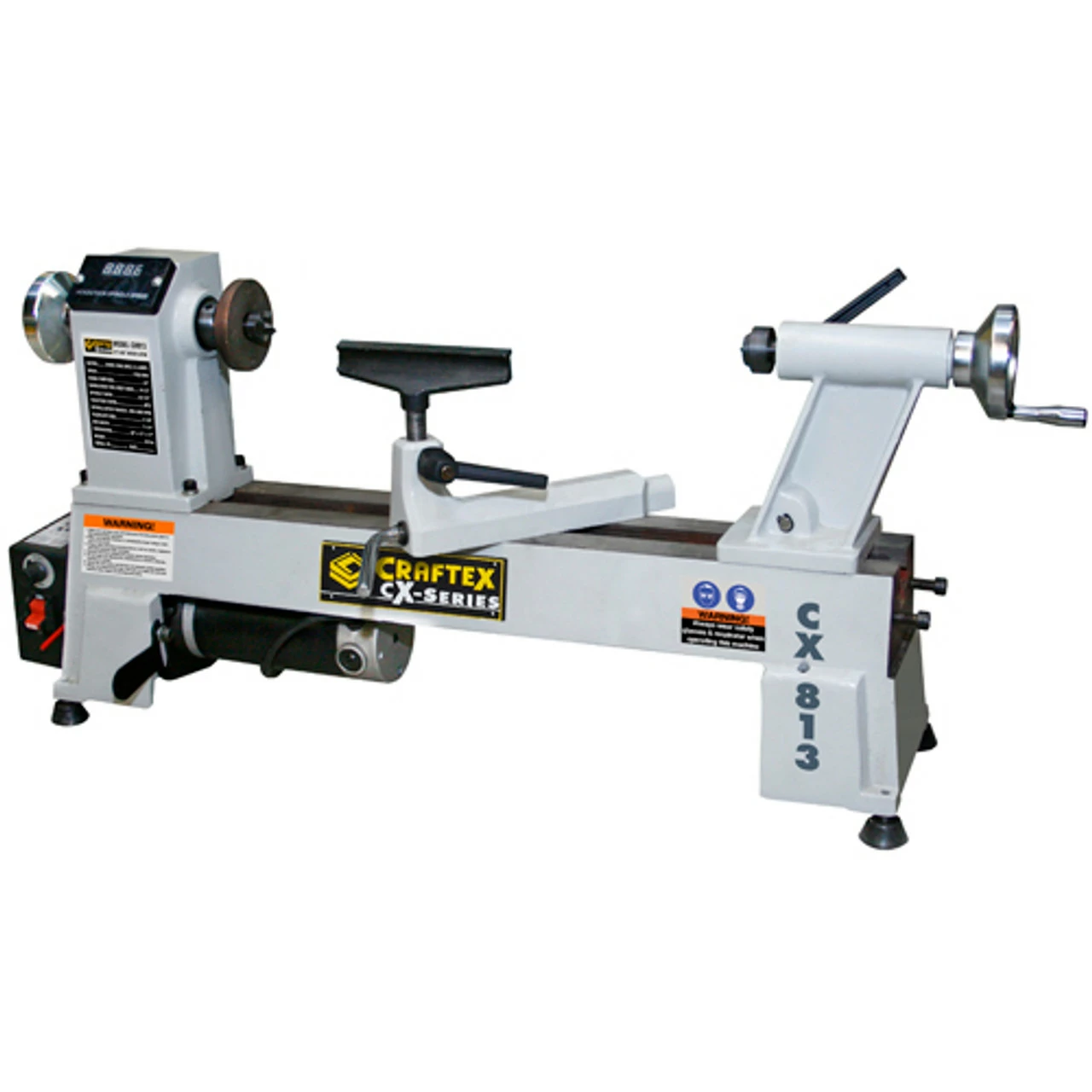

12″ x 18″ Mini Wood Lathe – Craftex CX-Series

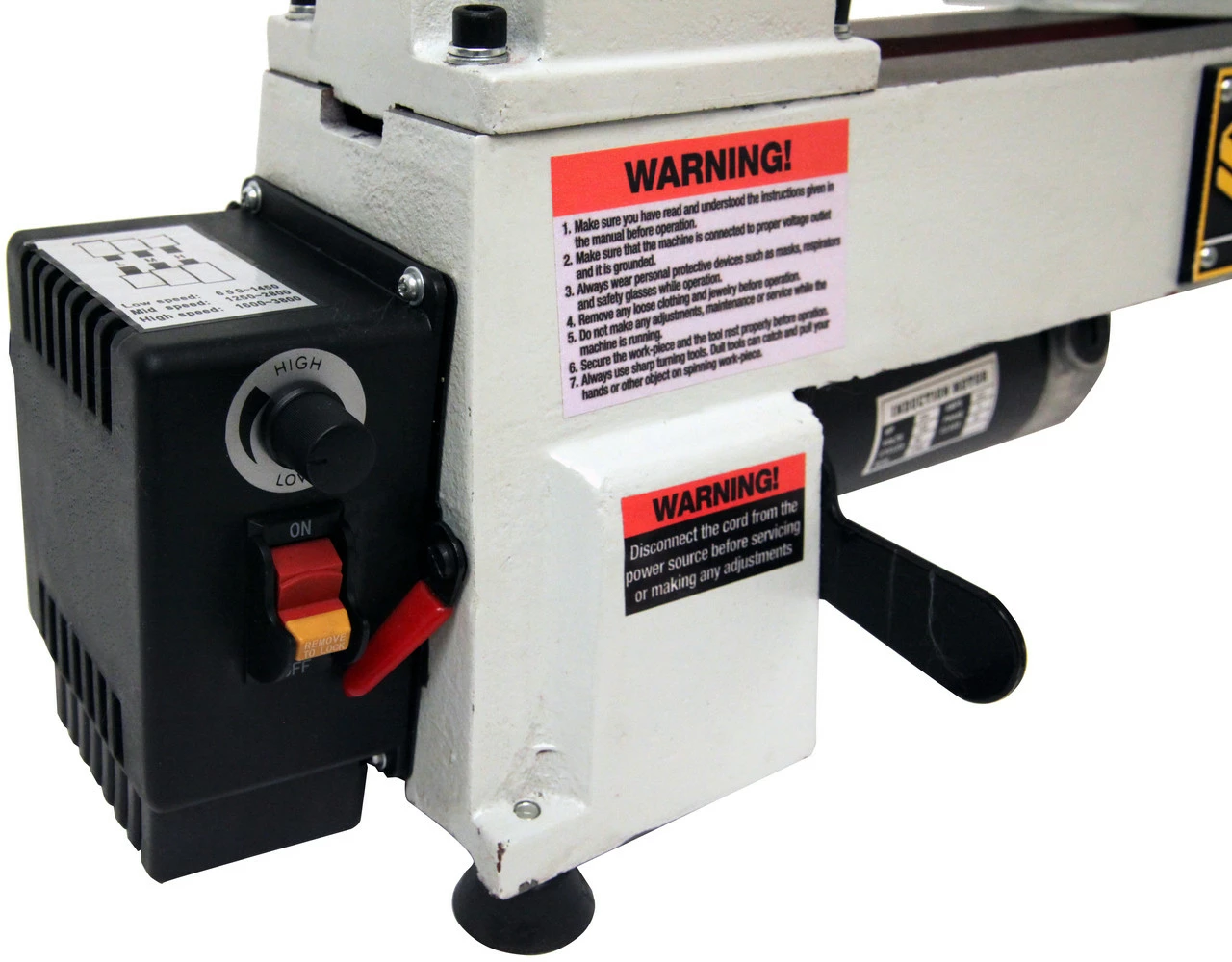

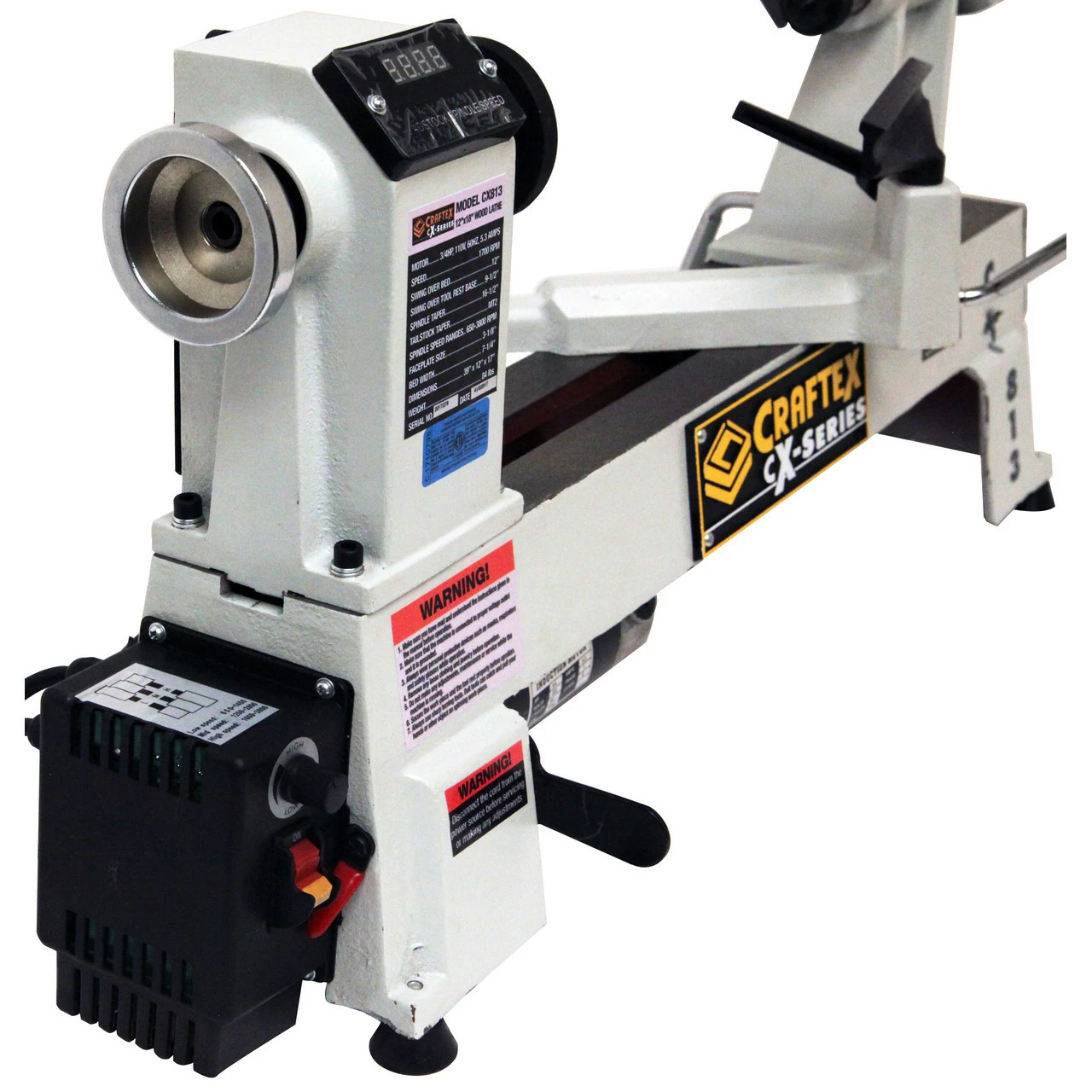

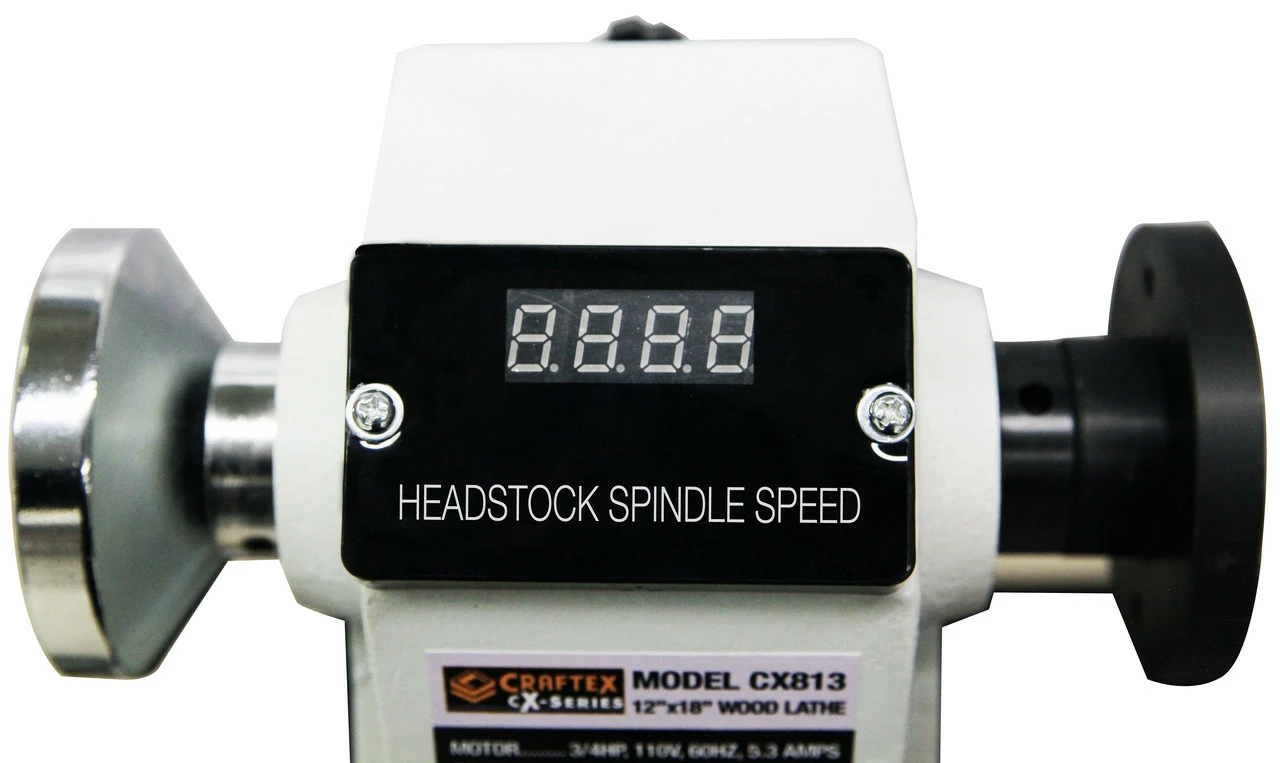

The CX813 mini wood lathe is equipped with a 3/4HP motor and turns work-piece up to 16-1/2″ in length. It comes with variable speed, ranging from 650 to 3800 RPM and features spindle digital readout which allows you to turn stock at the required speed. The On/Off switch on the lathe features a removable key which prevents from unauthorized operation.

Comes with a spur center, live center, 3-1/8″ faceplate, knockout bar, a user manual and a 3 year warranty.

The CX813 can be extended another 22″ by installing the Optional CX813EXT Bed Extension.

SPECIFICATIONS
Main Motor: 3/4 HP, 110V, 60 HZ, 5.3 Amps
Speed: 1700 RPM
Swing Over Bed: 12″
Swing Over Tool Rest Base: 9-1/2″
Distance Between Centers: 16-1/2″
Spindle TPI: 1″ x 8 TPI
Spindle Taper: MT2
Tailstock Taper: MT2
Tailstock Center Type: Live
Number of Spindle Speeds: Variable
Spindle Speed Ranges: 650 – 3800 RPM
Faceplate Size: 3-1/8″
Bed Width: 7-1/4″
Bed Construction: Cast Iron
Headstock Construction: Cast Iron
Tailstock Construction: Cast Iron
Dimensions: 39″ L x 12″ W x 17″ W
Approx. Weight: 84 lbs.
