Deals 🧨 WOOD LATHE BENCH TOP CRAFTEX CSA CX801 🎁

CX801

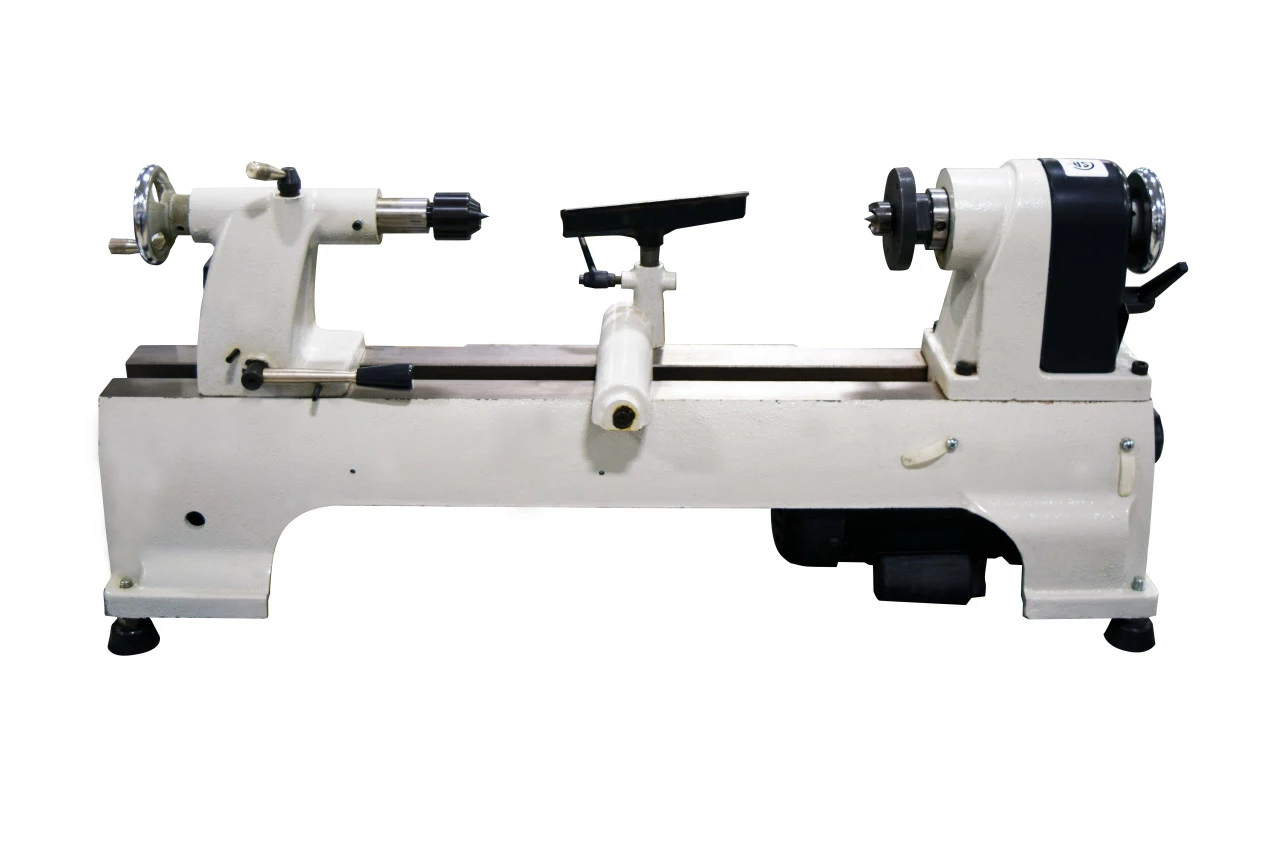

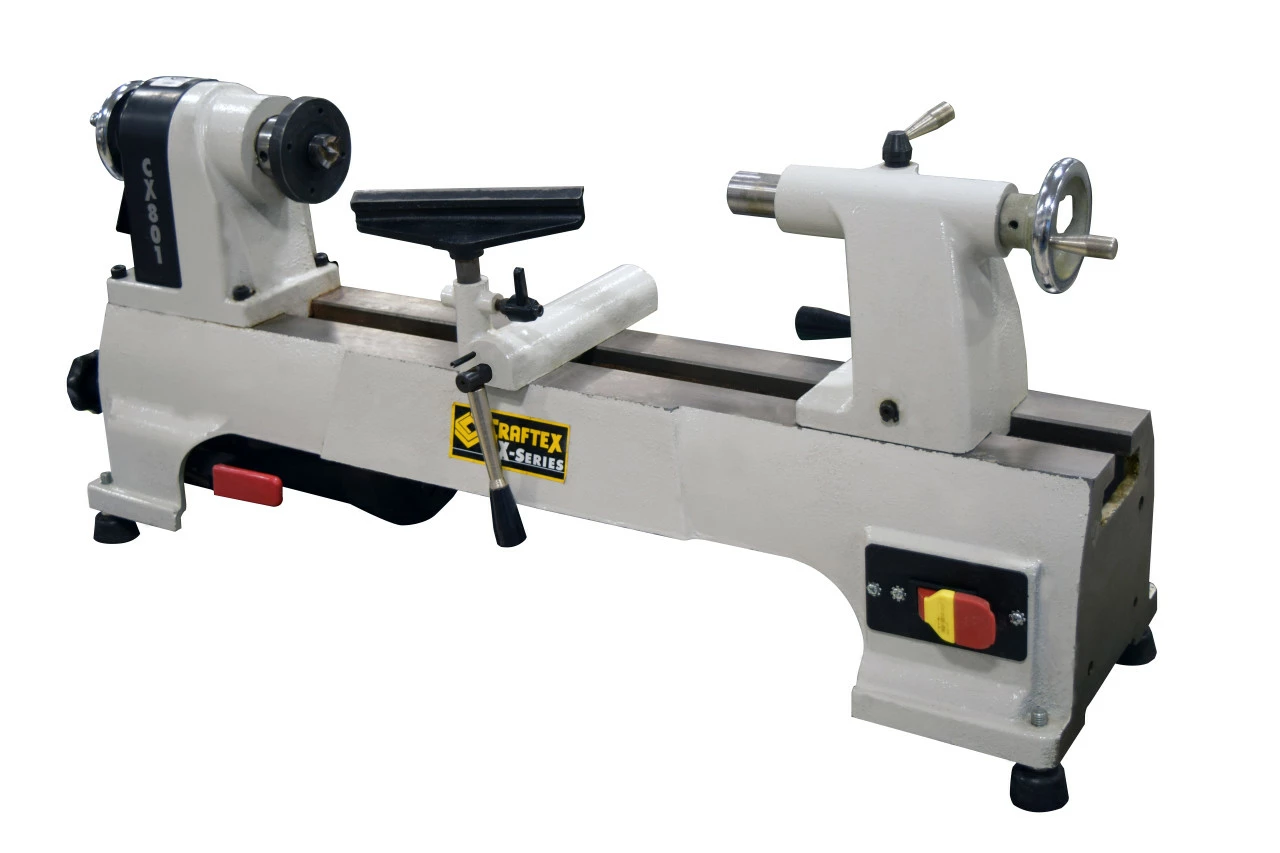

Heavy Duty Bench Top Lathe – Craftex CX-Series

Powered with a 1/2 HP motor and constructed of solid cast iron, the CX801 provides ample power to turn bowls and plates up to 10″ (254mm). The 6-speeds lathe feature on this lathe allows the user to turn stock at the required speed and rubber feet ensures vibration-free operation. The lathe can be extended up to 38″ by installing the (optional) extension bed.

SPECIFICATIONS

Main Motor: Single Phase 1/2 HP, 110V, 60 HZ, 6Amps
Speed: 1725 RPM
Swing Over Bed: 10”(254mm)
Swing Over Tool Rest (Base): 7-1/2”(190mm)
Distance Between Center: 15-1/2″ (394mm)
Tailstock Travel: 3-1/4″ (83mm)
Spindle Size: 7-51/64” x 1-7/8”
Spindle TPI: 1” x 8 TPI
Spindle Taper: MT2
Spindle Center: 5”(127mm)
Tailstock Taper: MT2
Tailstock Center: 5”(127mm)
Number of Spindle Speeds: 6
Spindle Speed Ranges: 480, 1270, 1960, 2730, 3327, 4023 RPM
Bed Width: 8-3/16”(208mm)
Faceplate Size: 3” (76mm)
Bed Construction: Cast Iron
Headstock Construction Cast: Cast Iron & Steel
Tailstock Construction Cast: Cast Iron & Steel
Bearings: Shielded and Lubricated
Dimensions: 37″ x 12″ x 19″
3 Year Warranty
Approx. Weight: 105 lbs. (45 Kg)
